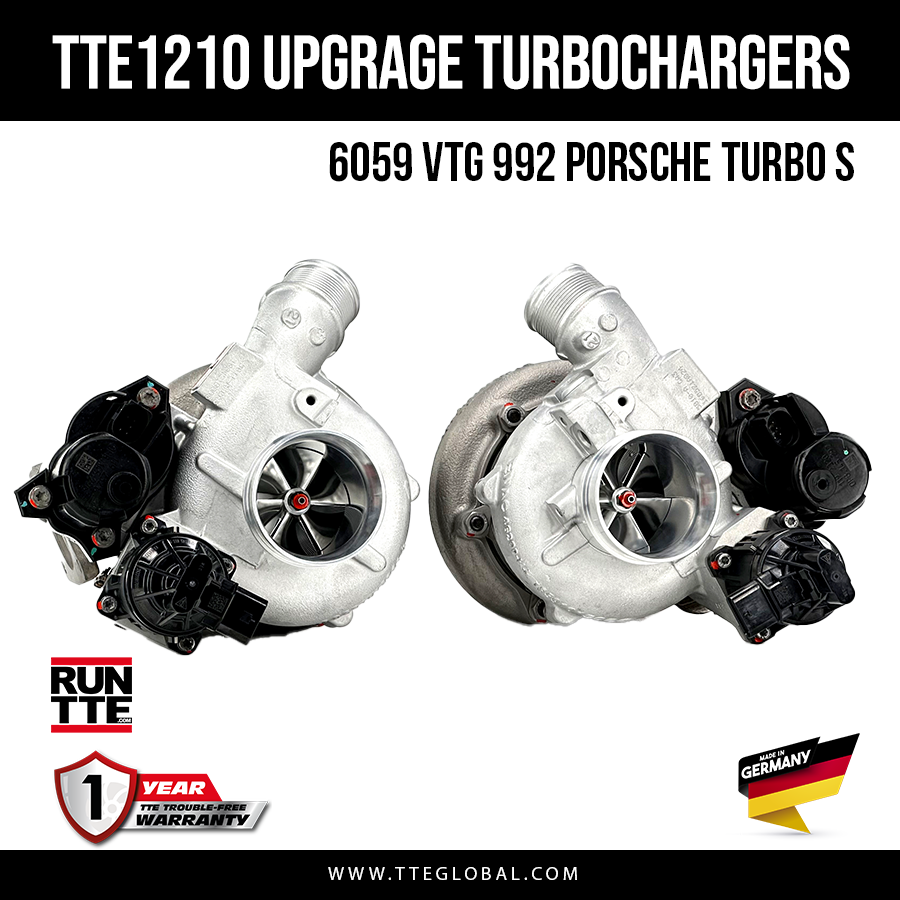

TTE1210 6059 VTG 992 PORSCHE TURBO S UPGRADE TURBOCHARGERS

TTE1210 6059 VTG 992 TURBO S UPGRADE TURBOCHARGERS

Welcome to our TTE1210 VTG Stage 3 Turbocharger upgrade for the PORSCHE 992 TURBO S.  The biggest VTG 992 stage offered in the world.

To construct a pair of TTE1210 VTG turbos we removed the original compressors and employ a larger and more efficient billet compressor wheel proven at 580hp each and mill the compressor cover to the optimum gap to match the new compressor profile. We also fitted large TTE 9 blade Low-Mass turbines in the turbine exhaust housings for greater flow and lower exhaust gas temperatures at high boost and fitted our TTE Motorsport upgrade bearing pack for durability. This combination gives great power potential but also a super fast boost response near same as stock, yet big gains in power for the ultimate hybrid turbocharger upgrade.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

• Original Genuine turbochargers as base parts
• TTE Billet Milled compressor 7+7 BLADE 60mm Inlet
• TTE High-Flow 9 blade Turbine 59mm outlet
• TTE Upgrade Motorsport bearings
• TTE VTG Mechanism

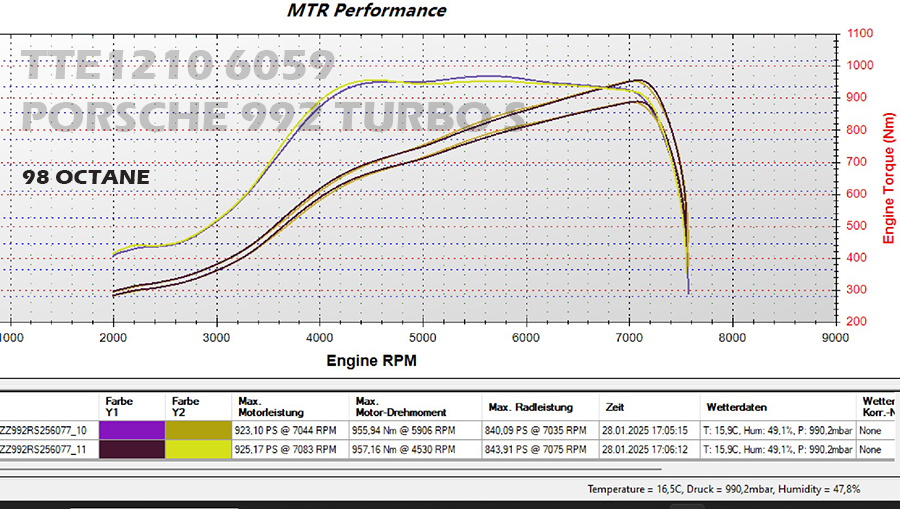

• 900+ PS Proven on 98octane
• Plug & Play installation only with DO88 upgrade intakes
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Software recalibration is required
• 1 YEAR TTE TROUBLE-FREE WARRANTY
• Made in Germany
• The price shown is for a PAIR of turbochargers

Known Software providers

M-ENGINEERING OTS software is available world wide by MSL Performance

MTR PERFORMANCE Software Germany

LEVEL PERFORMANCE Russia

Please check out our TTE HEAT SHIELD ISOLATION ADD-ON extra cost option that’s available above on the drop down menu.

Key Features

• Non-woven silicate fiber surrounded by welded foil
• Stainless steel rigid insulation foil
• High mechanical and vibration resistance, lightweight
• Excellent fluid splash and spill resistance
• Excellent corrosion resistance
• Resilient at continuous temperatures up to 1300°C
• Reduced dimensions
• Reduced engine bay temps
• Performance improvements
• Adjacent component protection
• Up to 600°C lower temps at Isolation surface

 This is a heat sheild is a special order item sold on a non-cancelable, non-exchangeable, non-returnable, non-refundable basis and does not carry any warranty. No Exceptions.
