SM 2.5TFSI UPGRADE 90MM SINGLE PIPE HIGH-FLOW DE CAT DOWNPIPE KIT

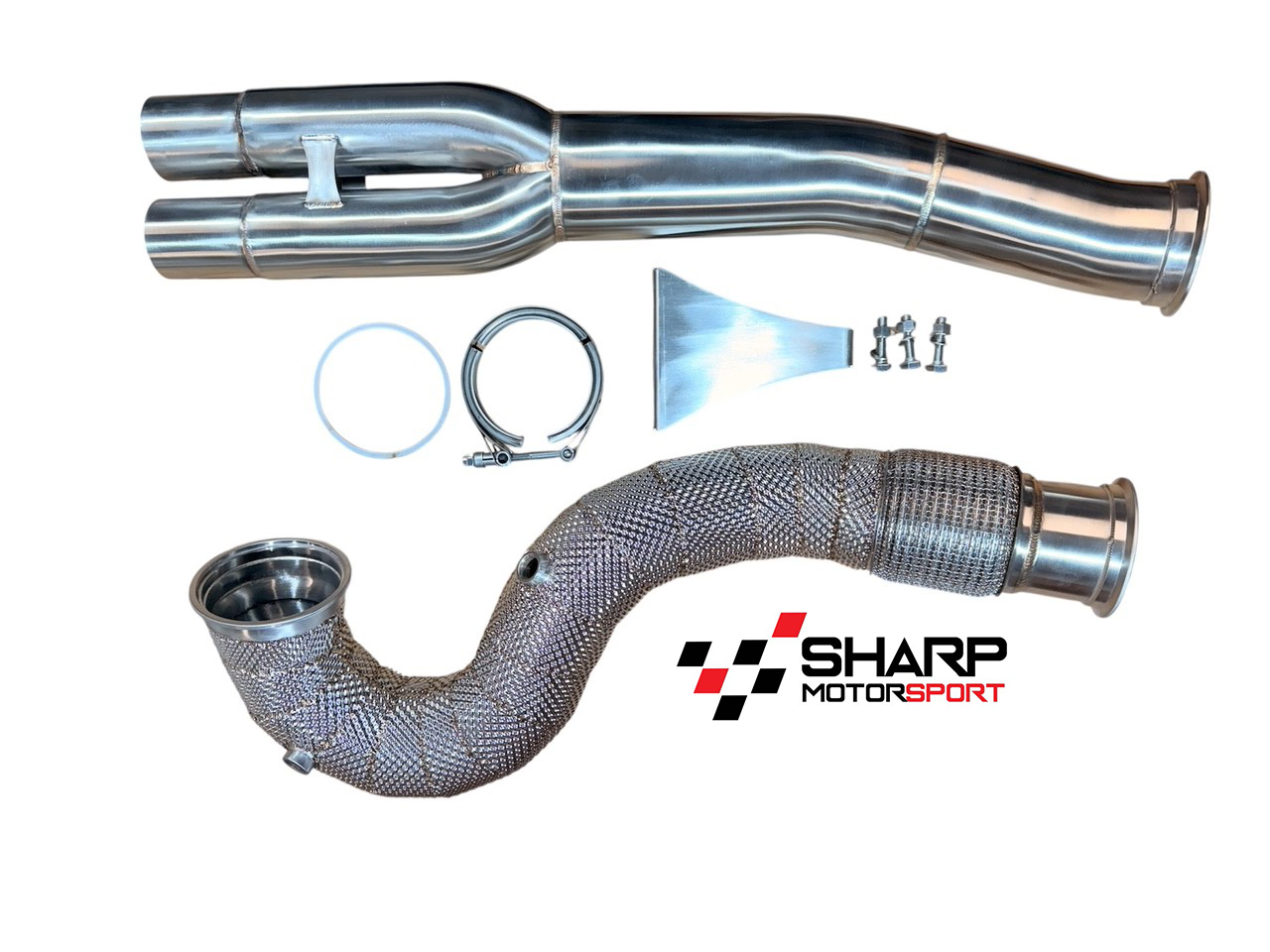

SM 2.5TFSI DAZA / DNWA SINGLE PIPE 90MM HIGH-FLOW DE CAT DOWNPIPE & MIDPIPE

The SM Downpipe & midpipe was specifically designed with performance in mind, one of the largest size tubing & highest flowing downpipes available for the 2.5TFSI

The single pipe design was focused using stage 3 cars to give less stress on the turbocharger at High RPM and High Boost. The SM single pipe design improves throttle response and more powerful linear boost. Out performing two pipe designs in flow & power.

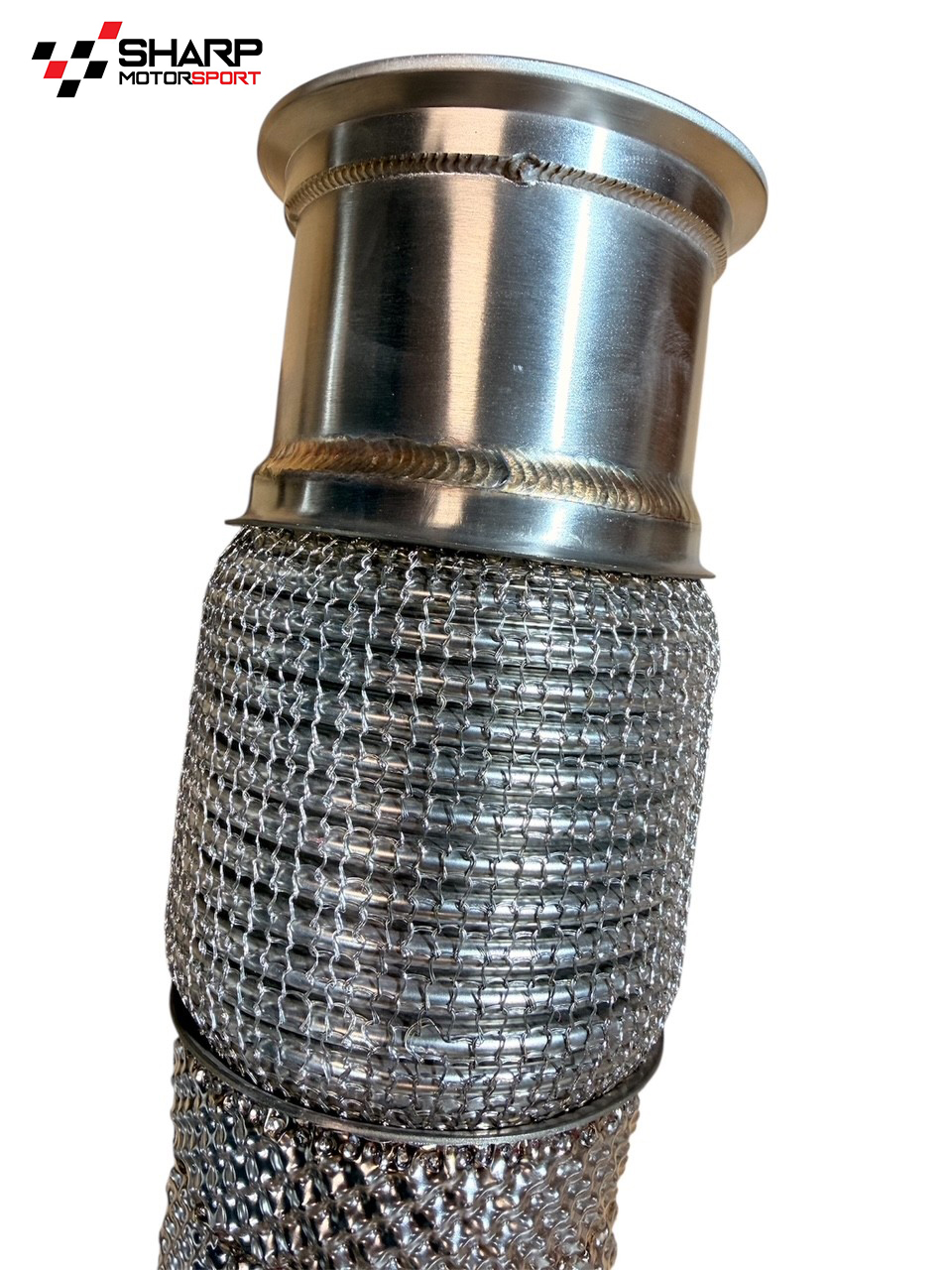

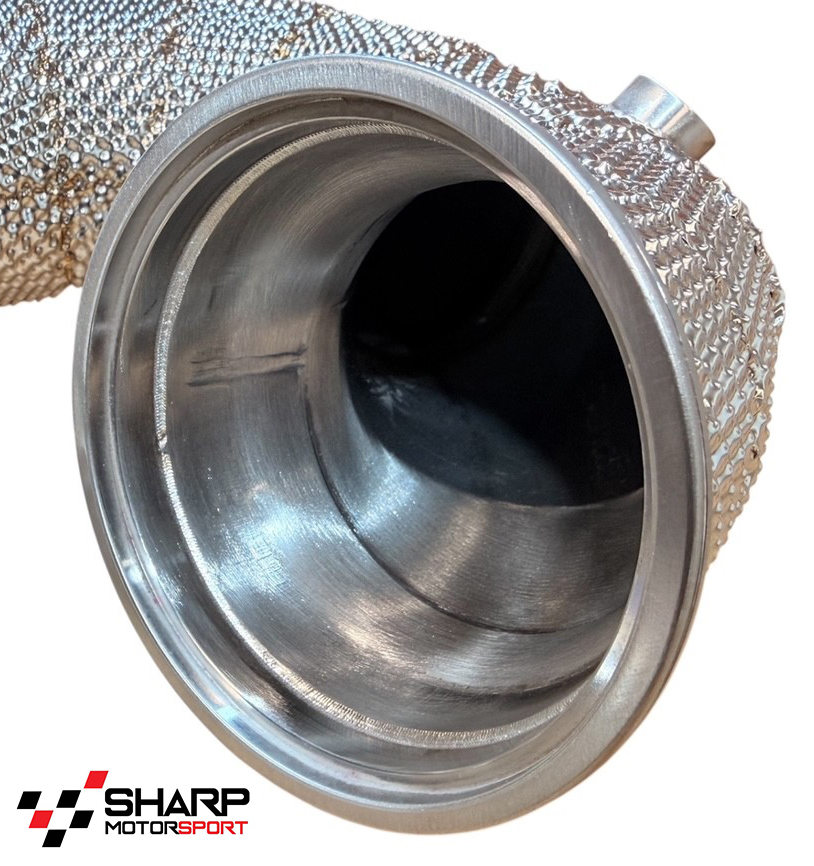

The Downpipe uses the OEM Vband connection to the turbocharger transitioning to 85mm tube(internal dia)that bends smoothly with a corrugated reinforced stainless steel flex joint and a Vband flange at the end to the Mid-pipe.

The Downpipe is stainless steel heat sheilded to improve vehicle safety, protect sensitive components and maintain opttimal performance with reduced heat soak in your engine bay.

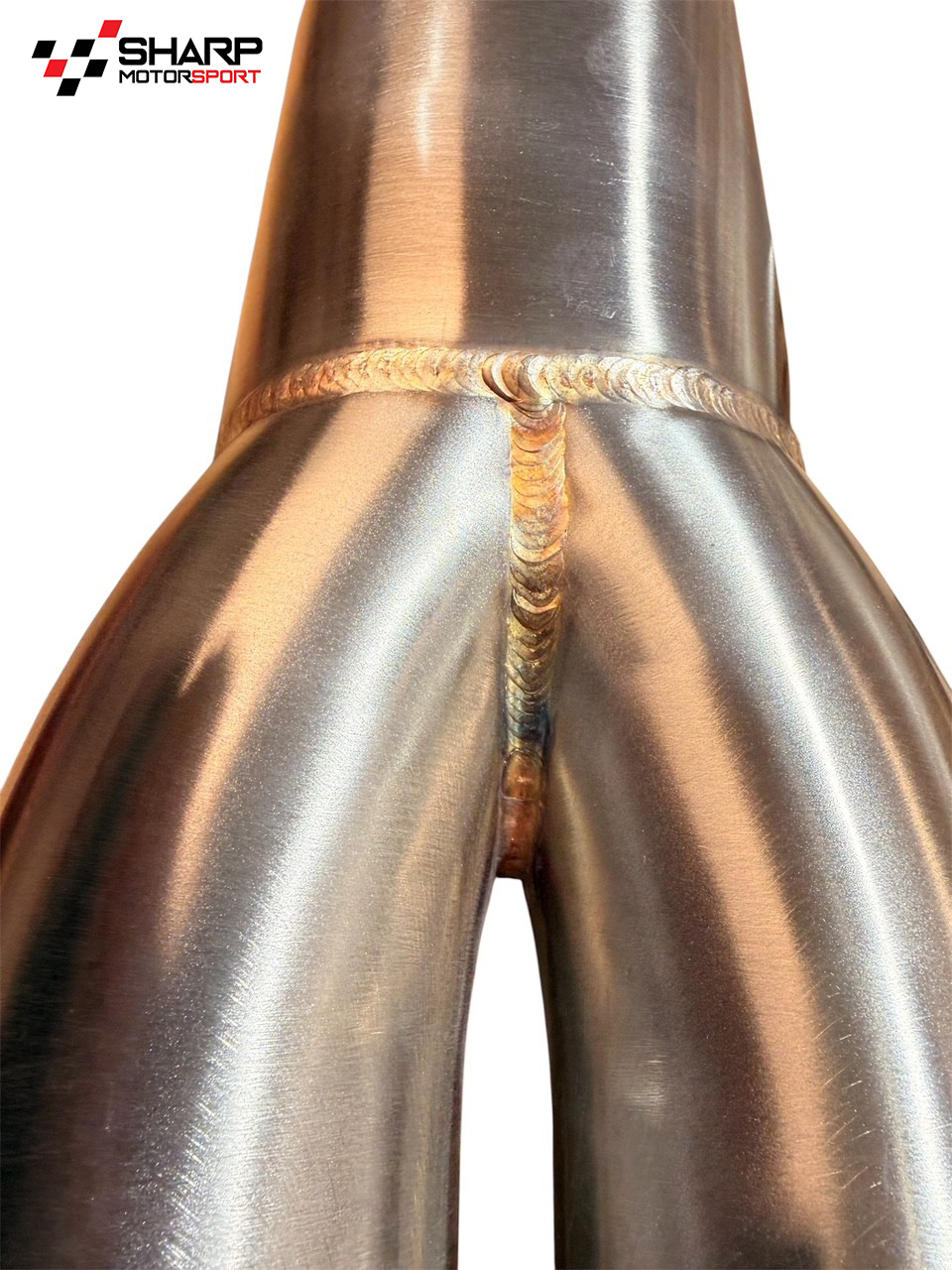

The Mid-pipe is stainless steel 2-1 design. 85mm(intenal dia) vband pipe merging smoothly to two 65mm(intenal dia)that connects to stock exhaust system or aftermarket .

• Hi-Flow Single Pipe design
• T304 Stainless Steel
• Stainless steel flex joint
• Stainless steel vband
• Stainless steel braket & fixings
• Brushed Finish
• TIG-welded
• DNWA or DAZA fitment
• Mates to OEM cat back system (we recommend OEM system changed at 600ps)
• Direct bolt on fitting
• Heat sheilded (Non-woven silicate fibre surrounded by welded stainless foil)

We recommend installation by a professional !
